Metallurgical equipment MASHKHIMPROM LLC

METALLURGICAL EQUIPMENT
- 5 YEARS WARRANTY!

We manufacture equipment to ensure the productive development of the metallurgical industry.

While projecting equipment for metallurgy, we take into account the specifics and all possible factors, including exposure to high temperatures, radiant heat and high dust content of production.

We offer metallurgical equipment at competitive prices and quality that meets the highest international standards.

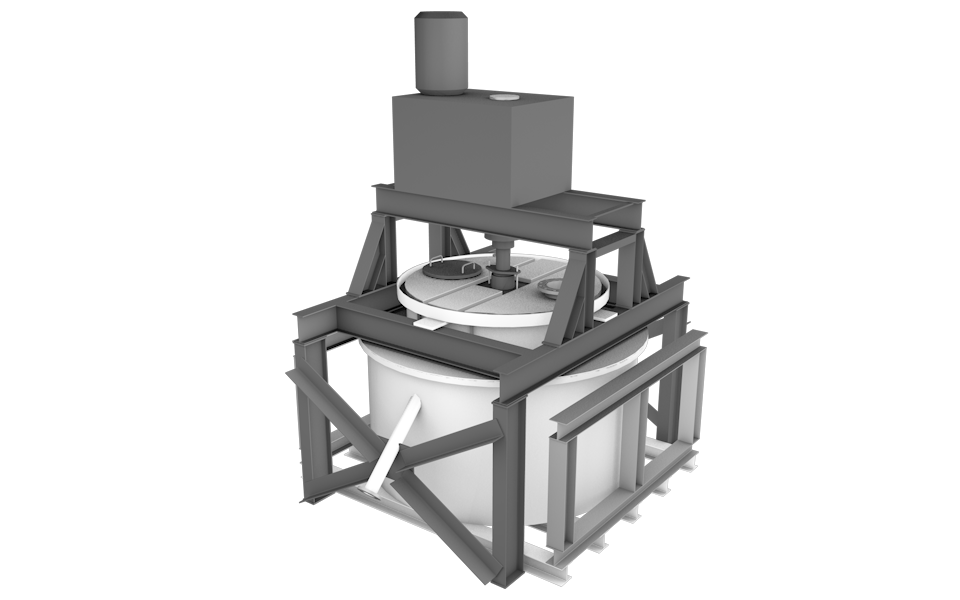

Denitrators MASHKHIMPROM LLC

DENITRATORS

Purpose: to maintain the temperature of the evaporated UNH solution at 105 ℃

Specifications:

   diameter - 2000 mm

   height - 3000 mm

   material of manufacture - 316L

Operating parameters:

   steam temperature ‒ 130 ℃

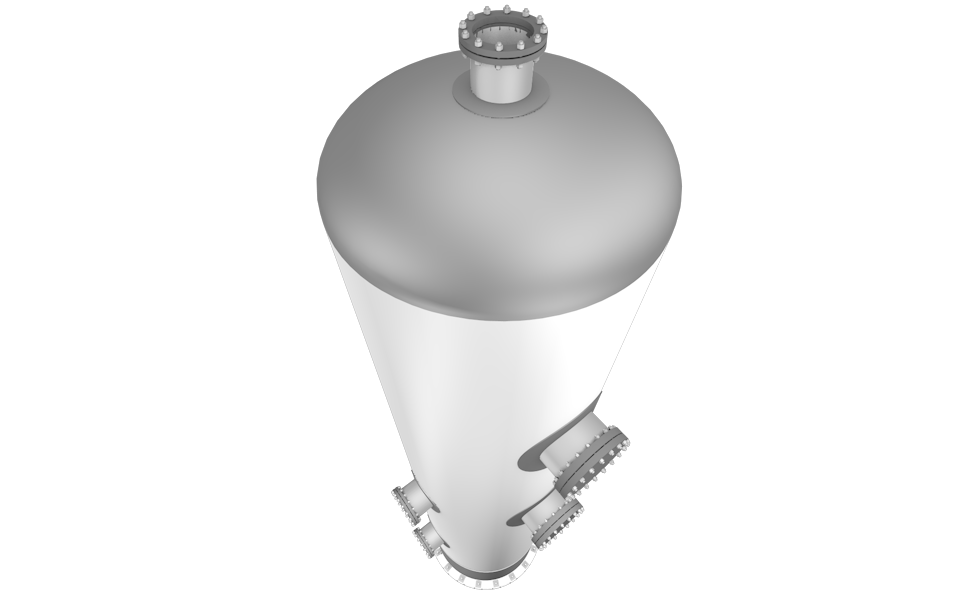

Nitric acid concentrators MASHKHIMPROM LLC

NITRIC
ACID CONCENTRATORS

Purpose: regeneration of nitric acid to a concentration of 35 %

Specifications:

   height - 10875 mm

   diameter - 2220 mm

   material of manufacture - 304L, 09G2S

Operating parameters:

   temperature ‒ 60 ℃

   pressure ‒ (-80) kPag

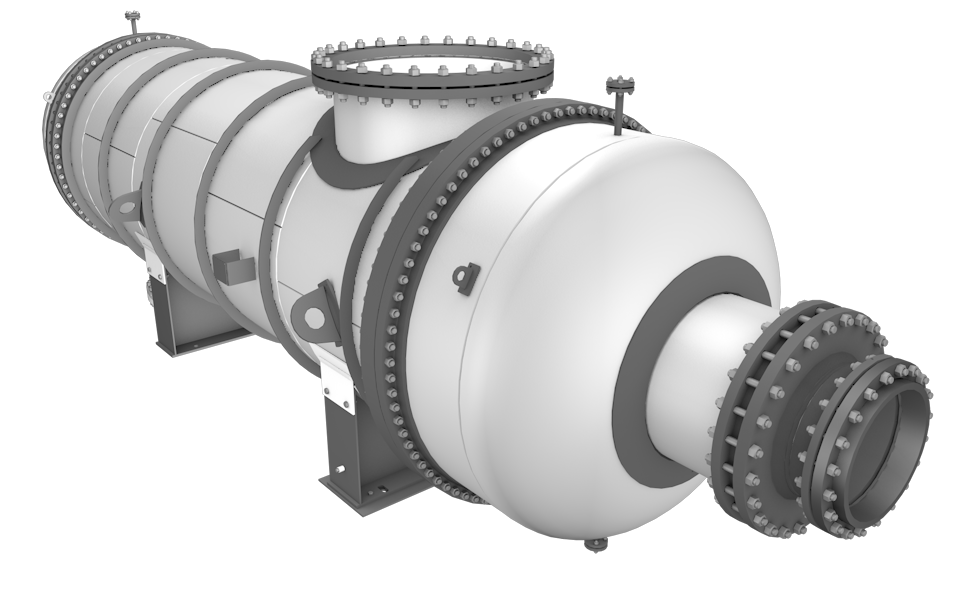

Surface capacitors MASHKHIMPROM LLC

SURFACE
CAPACITORS

Purpose: condensation of secondary steam.

Specifications:

   diameter - 916 mm

   length - 5167 mm

   heat exchange area ‒ 122 m2

   material of manufacture - 316L

Operating parameters:

   pressure in the pipe space ‒ 5 bar

   temperature in the inter-tube space ‒ (-1) bar

   pipe space temperature ‒ 35 ℃

   the temperature in the inter-tube space is 78 degrees Celsius.

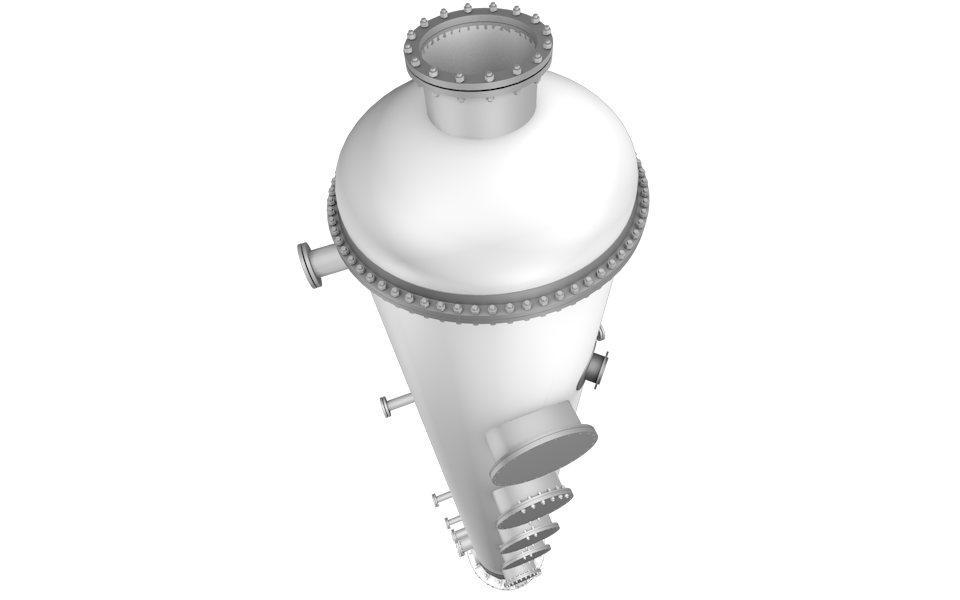

Absorption columns MASHKHIMPROM LLC

ABSORPTION
COLUMNS

Purpose: absorption of nitrogen oxides by water to produce 40% nitric acid.

Specifications:

   height - 11000 mm

   diameter - 1600 mm

   material of manufacture - 304L

   operating temperature ‒ 35 ℃

   operating pressure - +1 kPag

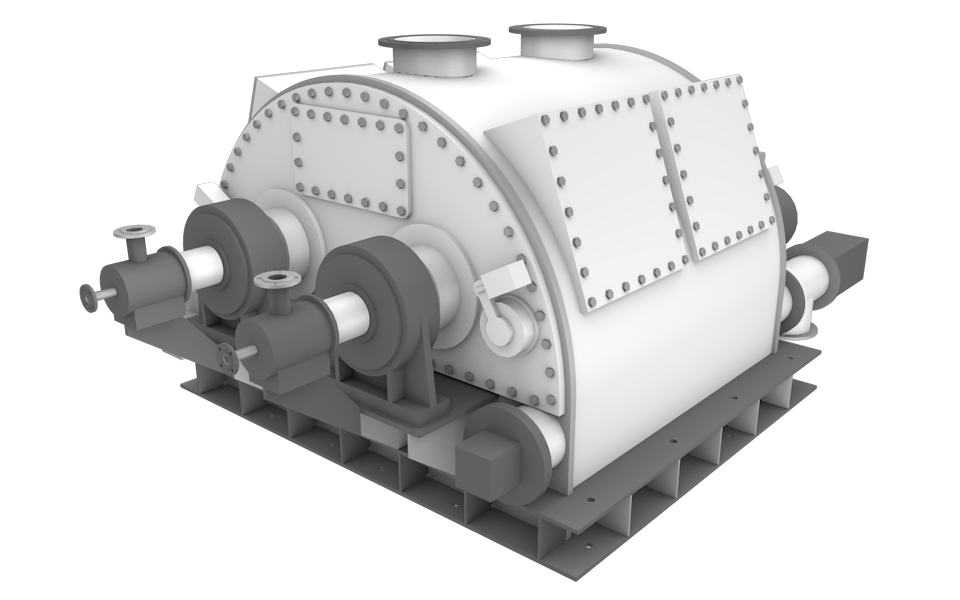

Roller dryers MASHKHIMPROM LLC

ROLLER
DRYERS

Purpose: drying the cubic residue to a humidity of no more than 35%

Specifications:

   drum surface area ‒ 2.7 m2

   roll diameter - 670 mm

   dryer height - 1634 mm

   material of manufacture - 03H21N21M4GB, St3

Operating parameters:

   temperature ‒ 155÷165 ℃

   steam pressure - 475 kPa

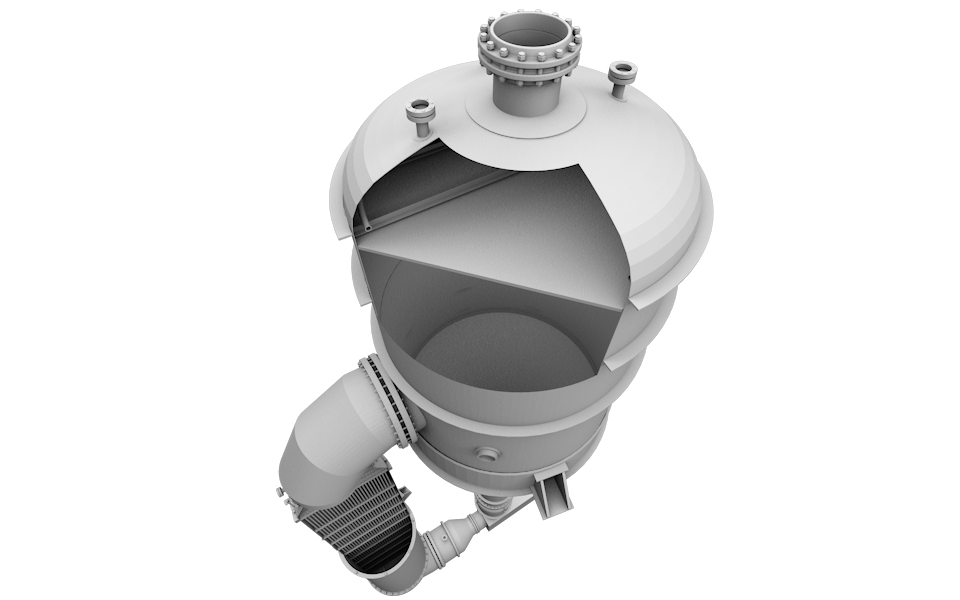

Evaporation plants MASHKHIMPROM LLC

EVAPORATION
PLANTS

We manufacture evaporation plants:

   two-stage

   three-stage

Three-stage evaporation plant:

Purpose: evaporation of a solution of uranyl nitrate to uranyl nitrate hexahydrate with a uranium concentration of 1430 g / l.

Specifications:

   height - 7100 mm

   diameter of the separation part - 1016 mm

   heat exchange area ‒ 184 m2

   material of manufacture - 03H21N21M4GB

Operating temperatures:

   1st case ‒ 79 ℃

   2nd case ‒ 97 ℃

   3rd building ‒ 144 ℃

Operating temperatures:

   1st building ‒ (-54) kPag

   2nd building ‒ (-7) kPag

   3rd building ‒ 50 kPag

Two-stage evaporation plant:

Purpose: evaporation of raffinate solution.

Characteristics of the 1st evaporator unit:

   height - 10116 mm

   diameter - 1820 mm

   heat exchange area - 80 m2

   material of manufacture - 03H21N21M4GB

Operating parameters:

   temperature ‒ 65 ℃

   pressure ‒ (-80) kPa

Characteristics of the 2nd evaporator unit:

   height - 8600 mm

  diameter - 1520 mm

   heat exchange area ‒ 50 m2

   material of manufacture - 03H21N21M4GB

Operating parameters:

   temperature ‒ 80 ℃

   pressure ‒ (-54) kPa
